Instructions

If your cart is equipped with a Run / Tow switch place switch in tow

Disconnect battery

Regardless of battery voltage input voltage can be anywhere from 12-100 VDC.

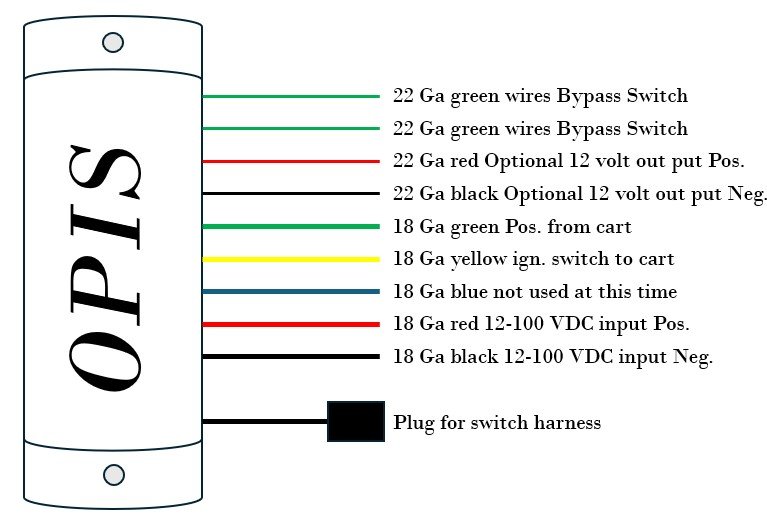

Connect red 14 Ga. wire (Larger) input to positive and black 14 Ga. (Larger) input to negative

Connect Green to power side of ignition switch

(This is the wire that has voltage)

Connect yellow wire to other ignition switch wire

Small 22 Ga. red and black wires are12 volt output provided for optional GPS module

Small 22 Ga. green wires will be ignition switch bypass. These can be connected to a hidden switch of any type that is normally open. In the event your FOB is lost or damaged this switch can be used to bypass the system. Reconnect battery and return run / tow switch to run

You should always use a meter to verify polarity.  Although these are positive from the factory, it often happens wires get changed throughout time.

Common Positive ignition switch wires

EZGO Club Car Yamaha

DCS Yellow DS Resistor Green G9-G16 Brown

TXT Blue Curtis Green G19-G22 Red w/ Yellow Strip

Gas Blue Resistor Red YDRE Red w/ Yellow Stripe

TXT48 White

FOB Facts

Fobs are directional.  If they are in open air (not in a pocket or bag) the proximity area will be larger.

When placed in a pocket of tight or snug fitting clothing the proximity area is reduced.

If your FOB is not sensed check the battery.  Press the button on the FOB, you should see a small blue light opposite the end of the key ring.  If you do not see the blue light you will need to replace the battery.  Standard 2032 batteries are used.

Watch the installation video

DISCLAIMER

NOT Recommended for vehicles with electric parking brakes or RXV Carts
